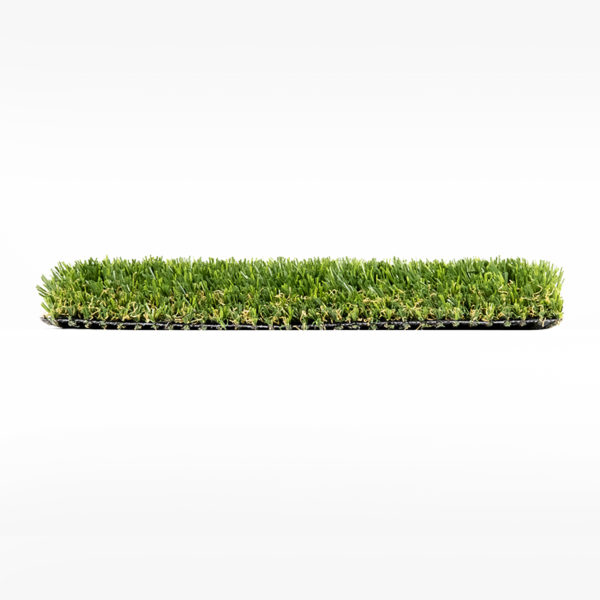

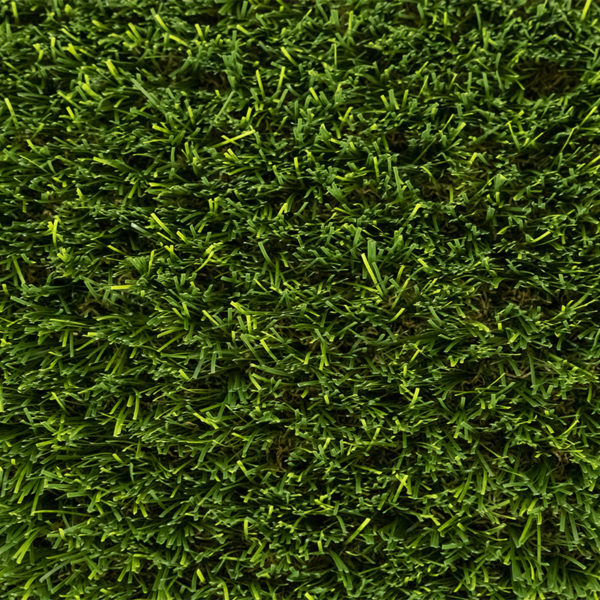

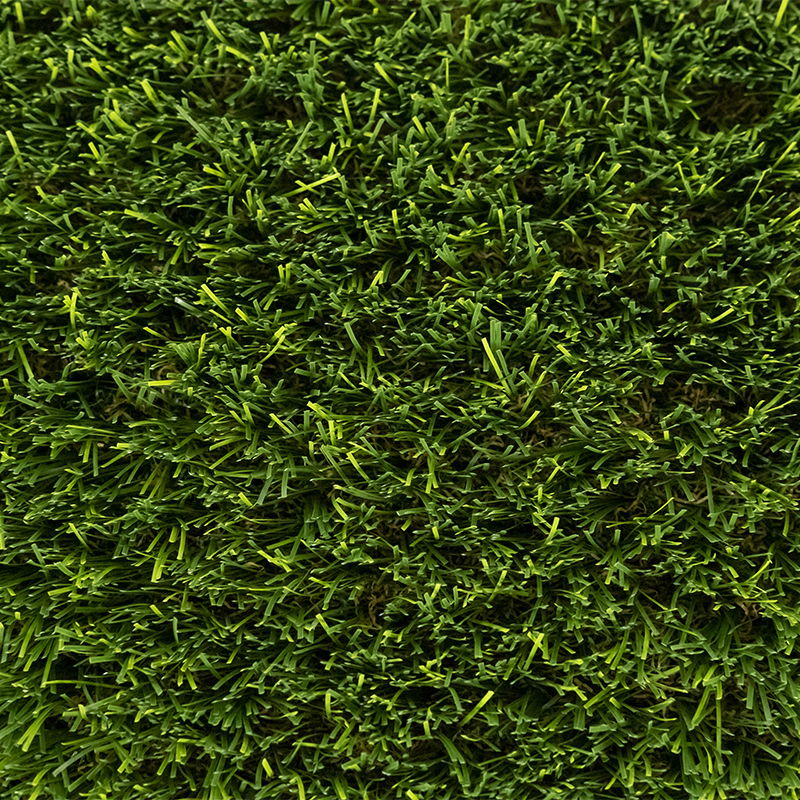

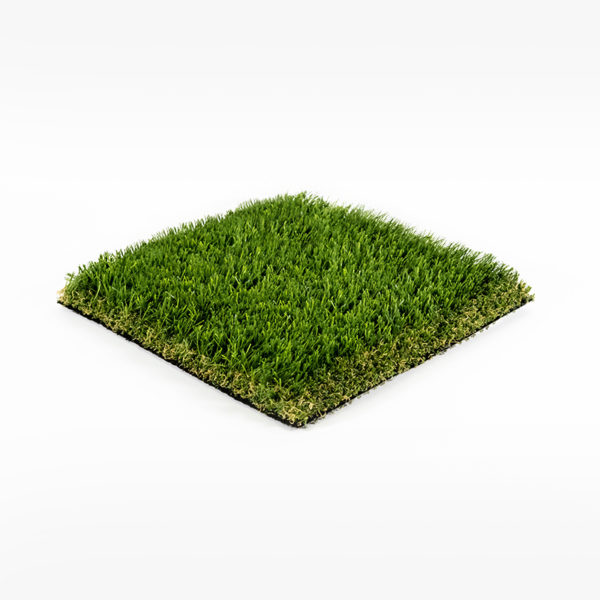

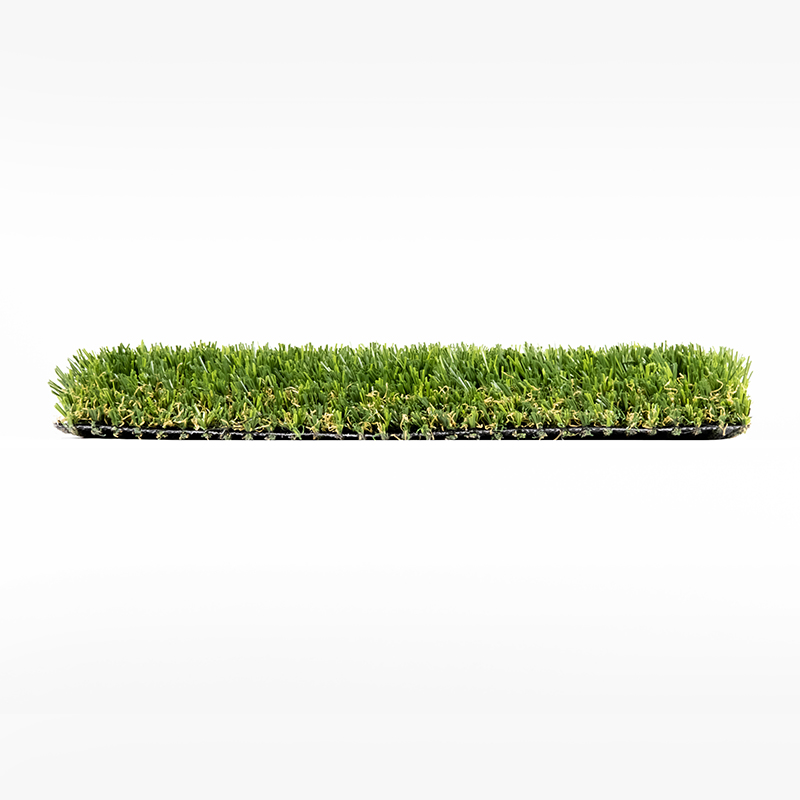

AGL Cloud Nine is an exceptional synthetic turf. Whether you live in areas with heavy rain or want to keep your yard clear of pet urine and other spills, this turf is for you.
Total Weight: ~105.7 oz.
Pile Height: ~1.6 in.
Backing: Optimum Flow™
Fiber: Polyethylene
Yarn Quality: DuraBlade™
Infill: 1-2 lbs / SqFt
Warranty: 16 Years
Roll Width: 15 ft
Blade Type: Diamond
© 2011-2023 Artificial Grass Liquidators. All Rights Reserved — The contents of all material available on this internet site are copyrighted by Artificial Grass Liquidators corporation unless otherwise indicated. all rights are reserved by Artificial Grass Liquidators, and content may not be reproduced, downloaded, disseminated, published, or transferred in any form or by any means, except with the prior written permission of Artificial Grass Liquidators, or as indicated below. All copyrights associated with products are the property of the company they are assigned to. Copyright infringement is a violation of federal law subject to criminal and civil penalties
(ASTM D5848) – Product Weight
Total Product Weight: 109.22 oz/yd²
Pile Yarn Weight: 79.84 oz/yd²
Primary Backing Weight: 8.01 oz/yd²
Secondary Backing Weight: 22.68 oz/yd²
(ASTM D5793) – Stitch Count & Gauge
Result: 3.66 Stiches per inch | 1/2” Gauge
(ASTM D1335) Average Tuft Bind Strength
Result: 13.5 lbs/force
(ASTM D5034) – Average Grab Tear
Average Grab Tear-Length, MD: 278 lbs/force
Average Grab Tear-Width, CMD: 258 lbs/force
(ASTM D2859) – Pill Flammability
Result: 8 out of 8 Pass | Meets 16CFR 1630
(ASTM F355-16e) – Gmax
Result: Gmax 138 / HIC 433
(EN 12616) – Permeability, Infiltrometer
Result: 57.0 inches / hr
(ASTM D3218) – Average Yarn Filament Thickness
Result: Mono 309 microns | 101 microns
(ASTM D2256) – Avg. Yarn Breaking Strength, Elongation
Result: Mono 21.4 lbs / force | Slit 14.9 lbs / force
(ASTM D1907) – Yarn Denier
Result: Mono 10950 | Slit 4789
(ASTM D 5848-20) – Product Weight
Total Product Weight: 70.65 oz/yd² | STC Standard 40 oz/yd²
Pile Yarn Weight: 35.43 oz/yd² | STC Standard +/- 10%
(ASTM D1335-17e1) Tuft Bind Strength
Result: 6.8 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.73 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 112.1 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80991H-01) – USGA Stimp Meter
Result: 8.5 Feet
(80991G-01) – Lisport, 1000 cycles
(ASTM D 5848-20) – Product Weight
Total Product Weight: 105.76 oz/yd²
Pile Yarn Weight: 75.35 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.5 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 264.1 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 99.54 oz/yd²
Pile Yarn Weight: 69.68 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.5 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 320.9 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 99.54 oz/yd²
Pile Yarn Weight: 69.68 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.5 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 320.9 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 99.54 oz/yd²
Pile Yarn Weight: 69.68 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.5 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 320.9 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 83.66 oz/yd²
Pile Yarn Weight: 49.20 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.8 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 331.3 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 83.66 oz/yd²
Pile Yarn Weight: 49.20 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.8 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 331.3 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 67.99 oz/yd²
Pile Yarn Weight: 37.84 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 11.3 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.68 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 19.6 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 9
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80991H-01) – USGA Stimp Meter
Result: 7.92 Ft. | 8.08 ft.
(80991G-01) – Lisport, 1000 cycles
(ASTM D 5848-20) – Product Weight
Total Product Weight: 44.80 oz/yd²
Pile Yarn Weight: 25.03 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 7.8 lbs/force | STC Standard: 6.8 lbs/force
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 34.6 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 75.90 oz/yd²
Pile Yarn Weight: 42.30 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 9.5 lbs/force | STC Standard: 6.8 lbs/force
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 80.6 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 96.59 oz/yd²
Pile Yarn Weight: 67.19 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.4 lbs/force | STC Standard: 6.8 lbs/force
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 89.8 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 109.22 oz/yd²
Pile Yarn Weight: 79.84 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 11.5 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 41.4 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect
(80993G) – Lisport
(ASTMD 5848-20) – Product Weight
Total Product Weight: 83.82 oz/yd²
Pile Yarn Weight: 56.67 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.3 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 44.7 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 71.58 oz/yd²
Pile Yarn Weight: 42.78 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 15.9 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 69.2 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 56.44 oz/yd²
Pile Yarn Weight: 32.01 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 10.1 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 65.7 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 10 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 71.58 oz/yd²
Pile Yarn Weight: 42.78 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 15.9 lbs/force | STC Standard: 6.8 lbs/force
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 69.2 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 71.58 oz/yd²
Pile Yarn Weight: 42.78 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 15.9 lbs/force | STC Standard: 6.8 lbs/force
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 69.2 in/hr | STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Negligible or No Effect, 9 = Very Slight
(80993G) – Lisport
(ASTM D 5848-20) – Product Weight
Total Product Weight: 96.94 oz/yd²
Pile Yarn Weight: 65.07 oz/yd²
(ASTM D1335-17e1) Tuft Bind Strength
Result: 14.0 lbs/force | STC Standard: 6.8 lbs/forceg
(ASTM F2765-14) – Lead Content
Result: <0.5 mg/Kg | STC Standard: <100 mg/Kg
(ASTM D2859-16) – Pill Flammability
Result: 8 out of 8 Pass | STC Standard: 7 out of 8 Pass
(ASTM F1551-09) – Water Permeability
Result: 70.3 in/hr |STC Standard: Greater than 10 in/hr
(ASTM G154-16) – UV
Result: Color: 9 / Texture: 10
Ratings are on a grade scale of 1-10; 10 = Neglibible or No Effect, 9 = Very Slight
(80993G) – Lisport
